SKU: RMC-1

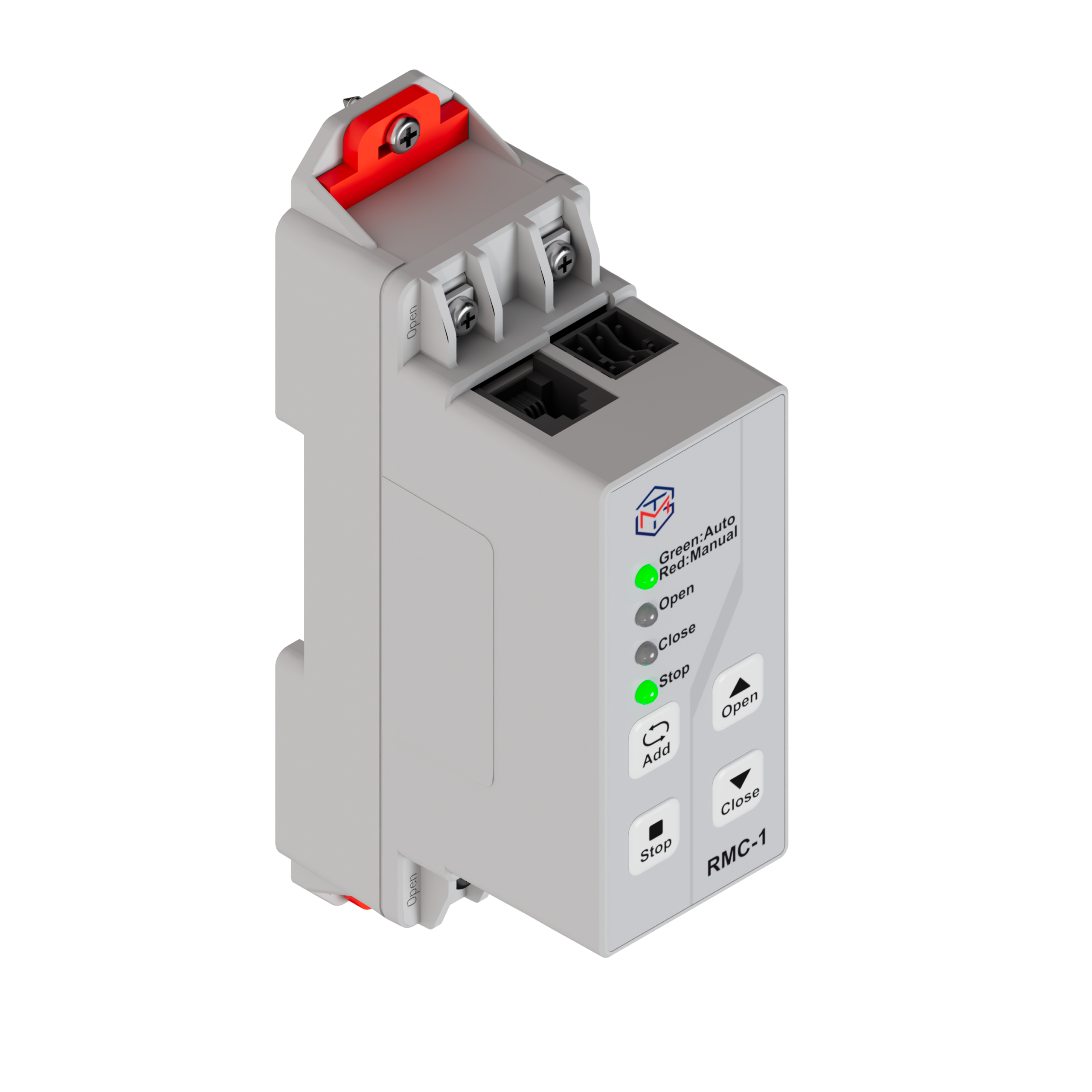

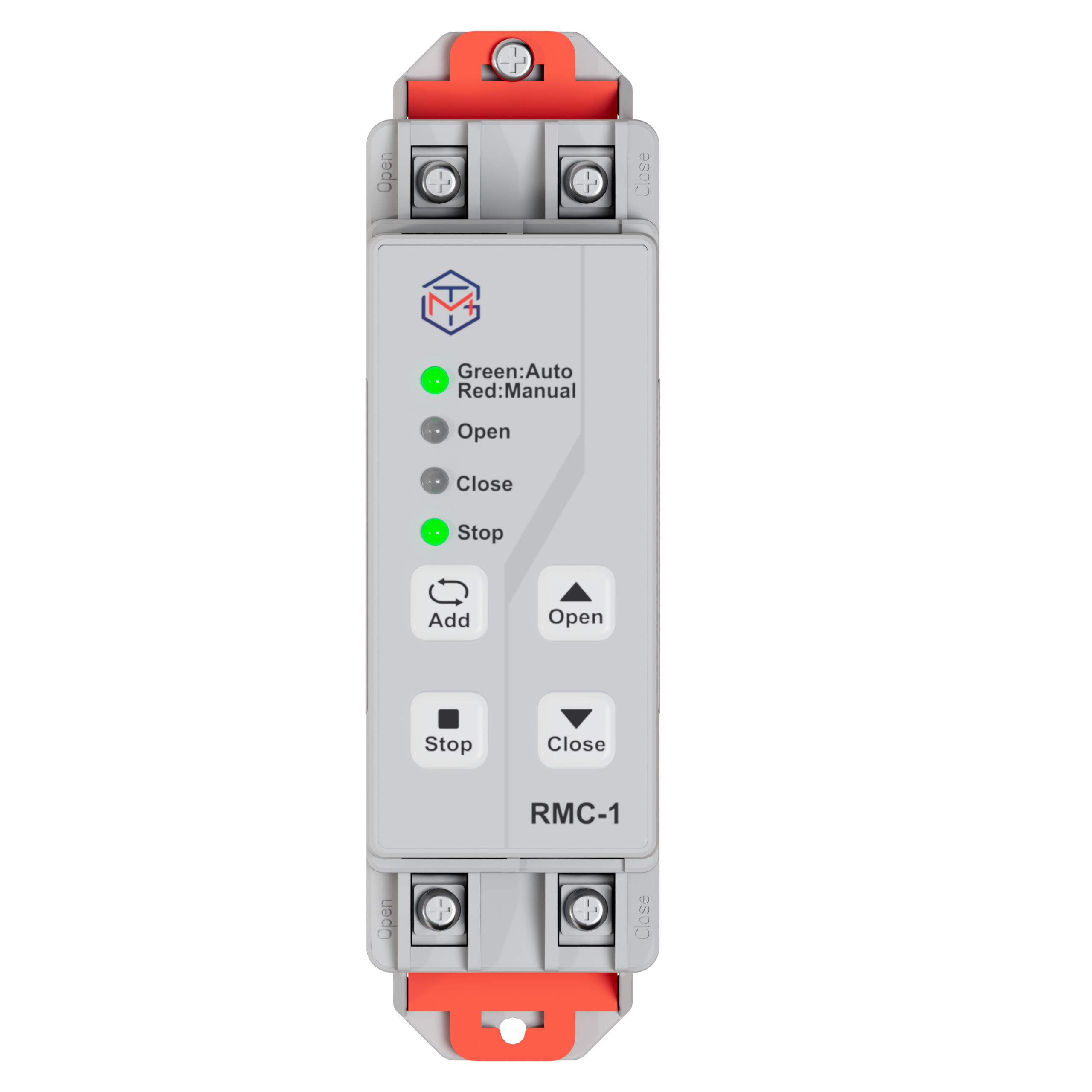

Motor Control Dry Contact Station (RMC-1)
Single/Three Phase Curtain Motor Controller
Product Features
- Provides precise ON/OFF control for terminal equipment
- Equipped with two internal relays providing an isolated dry-contact output (1A rating)
- Supports manual and automated management of external circuits
- Facilitates forward rotation, reverse rotation, and motor stopping
The RMC-1 (Motor Control Dry Contact Station) is a specialized peripheral driver designed to provide precise ON/OFF control for terminal equipment within the Green-X Greenhouse Control System (GCS-1) ecosystem. Equipped with two internal relays, RMC-1 provides a dry‑contact output only; it functions solely as an isolated switch with a contact rating of 1A.
The RMC-1 allows for manual and automated management of external circuits, facilitating functions such as forward rotation, reverse rotation, and stopping of motors. RMC-1 also supports the integration of a maximum of two Position Switches (TPS-1).
Specifications
Specifications
Input Voltage
12V 0.1A
Dry Contact
1A@250VAC, 1A@30VDC
Operating Temperature
32~104°F (0~40°C)
Operating Humidity
≤90%RH
Package Contents
Motor Control Dry Contact Station (RMC-1)
1
4ft RJ12 Cable
1
0.5ft RJ12 Cable
1
2EDGKNH-3.5mm_2x3P
1
LC89+LZ4R-3.5mm_2x3P
1
