SKU: LMA-14

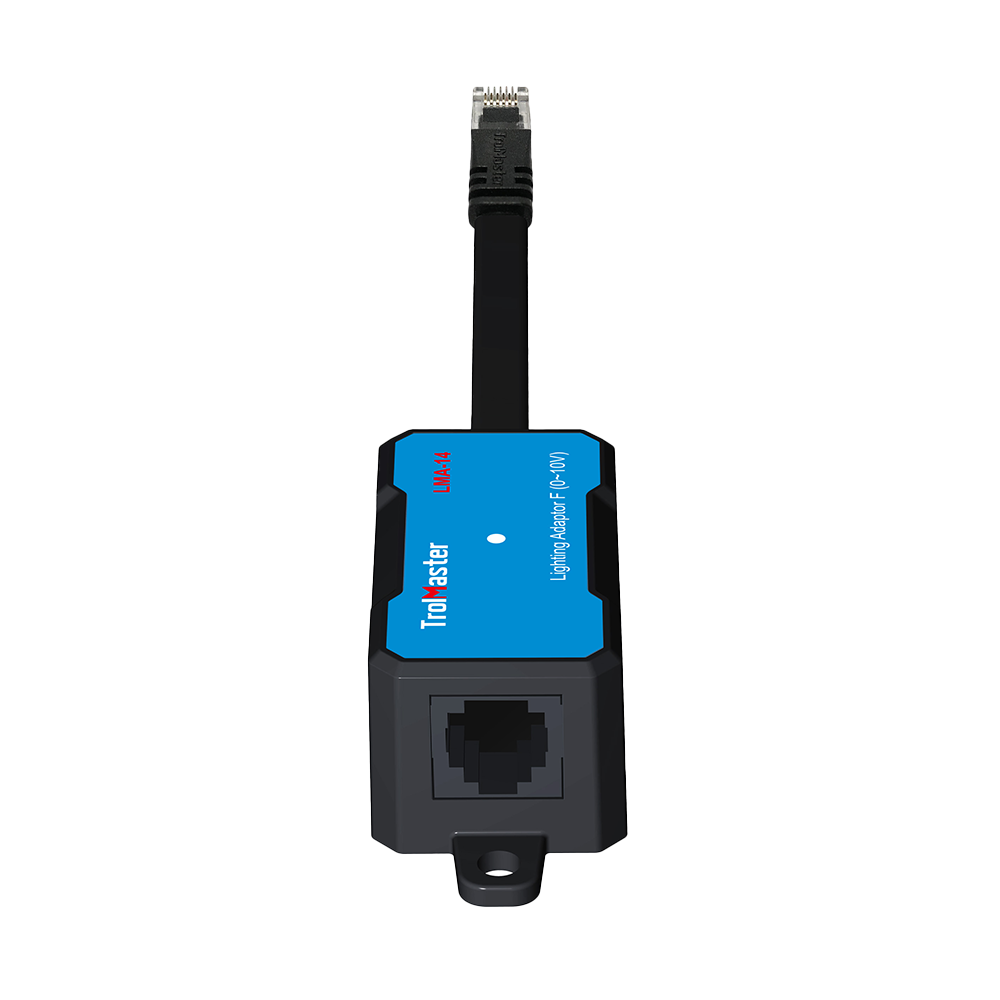

Lighting Control Adapter F (LMA-14)
Lighting Control Adapter F
for Controlling Fluence or any light using 0~10V protocal
Product Features
- LED Power Indicator
- Convert Digital Signal to Analog Signal

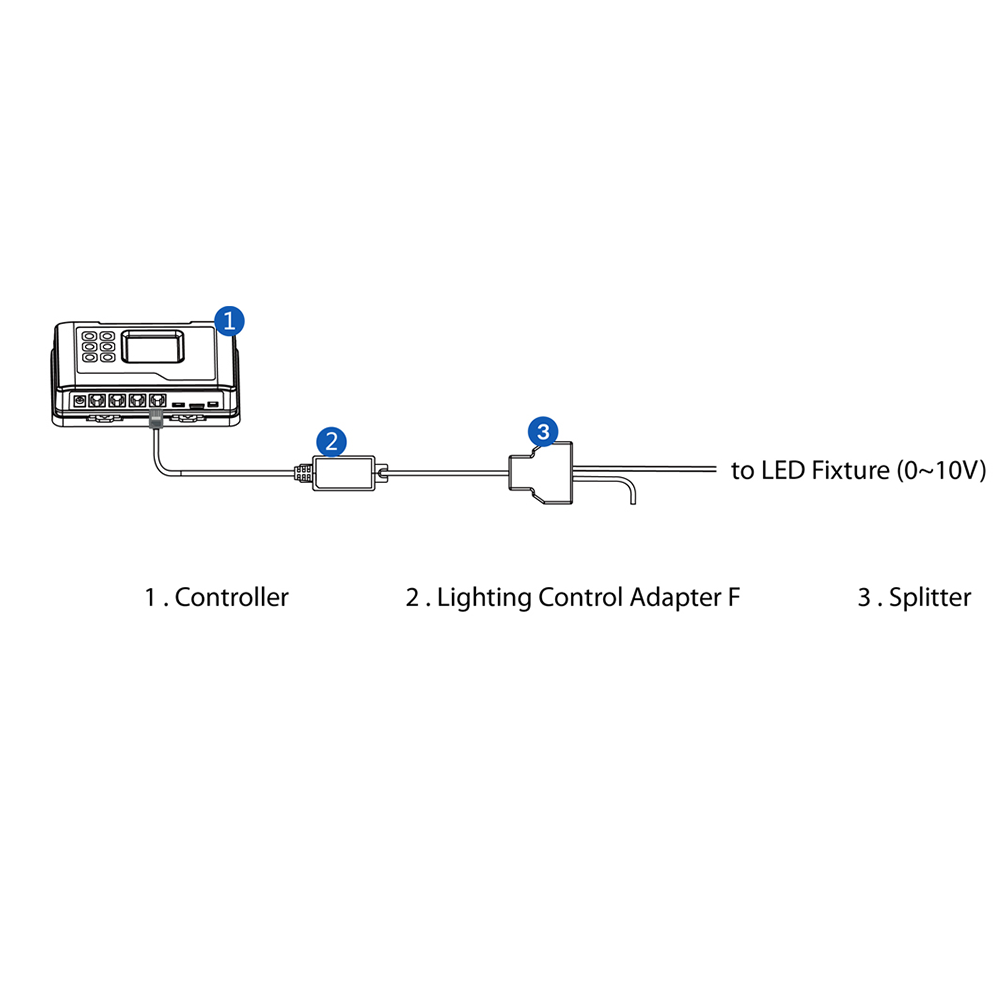

- Seamless Connection with Hydro-X with RJ12 Cable
- Plug & Play
TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
This LMA-14 lighting adapter is specially designed to control the LED fixtures or any lights with 0-10V protocal.
Specifications
Specifications
Input Voltage
12V
Output Voltage
0-10V
Maximum Current
0.05A
Working Temperature
32-122°F
Working Humidity
≤90%
Package Contents
Lighting Control Adapter F (LMA-14)
1
RJ12 to Pigtail Connection Cable Set（ECS-2）
1
