SKU: AMC-1
Single/Three Phase Curtain Motor Controller (AMC-1)
Single/Three Phase Curtain Motor Controller
Product Features
- Single/Three Phase power compatible
- 100-277V power compatible(Single Phase)
- 207-480V power compatible(Three Phase)
- Plug & Play
- Forward and reverse operation
- Motor protection
The AMC-1 is an advanced agricultural greenhouse curtain motor driver that facilitates both manual and automated control of curtain motors. Designed for seamless integration with the GCS-1 (Green-X Greenhouse System), the AMC-1 allows for precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by enabling centralized monitoring and control, which optimizes environmental conditions for plant growth and improves operational efficiency.

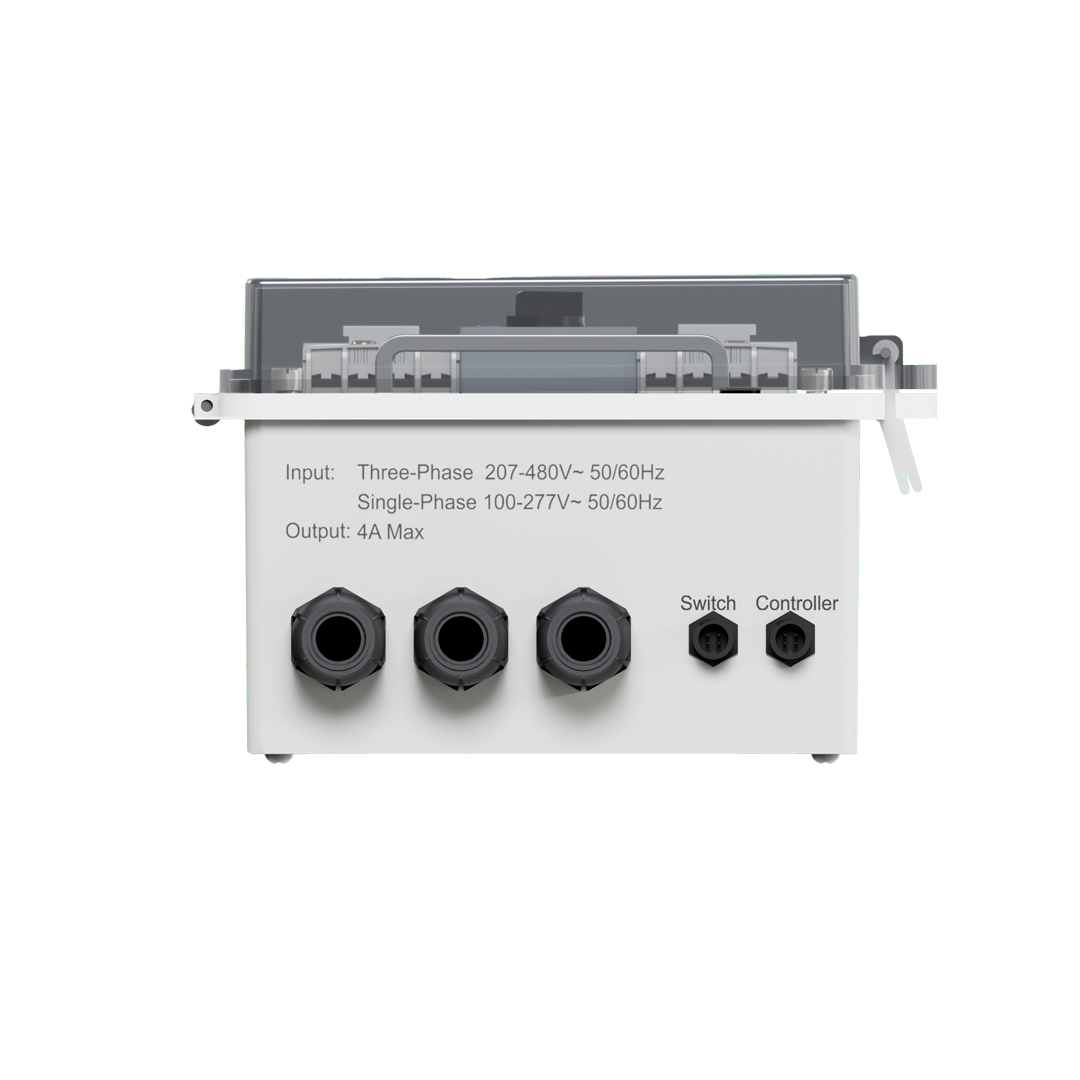

Specifications
Specifications
Single-Phase Input Voltage
100-277V~, 50/60Hz
Three-Phase Input Voltage
207-480V~, 50/60Hz
Maximum Output Current
4A
Working Temperature
32-104°F
Working Humidity
≤90%
Package Contents
Single/Three Phase Curtain Motor Controller
1
12ft RJ12 to 4-pin IP65 Connector Cable
1
