SKU: TLD-4

ThinkGrow Model One System TLD-4 Driver

90watt Model One LED driver with 4 spectrum Chanenels

Product Features

  • Four Adjustable Spectrum Channels
  • Auto-sensing Voltage
  • Plug and Play
  • Mix and Match
Chat with our experts
Overview Specs Support

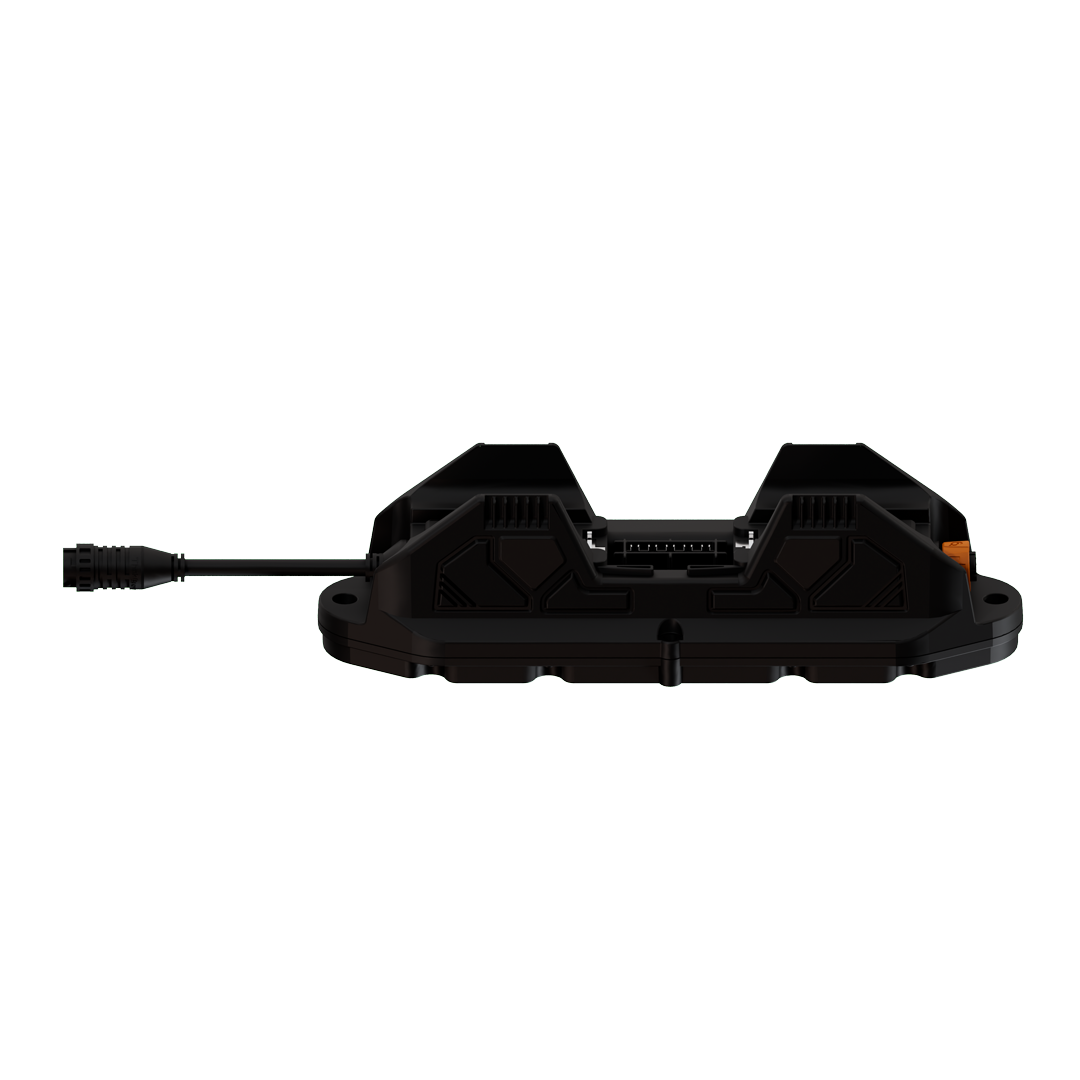

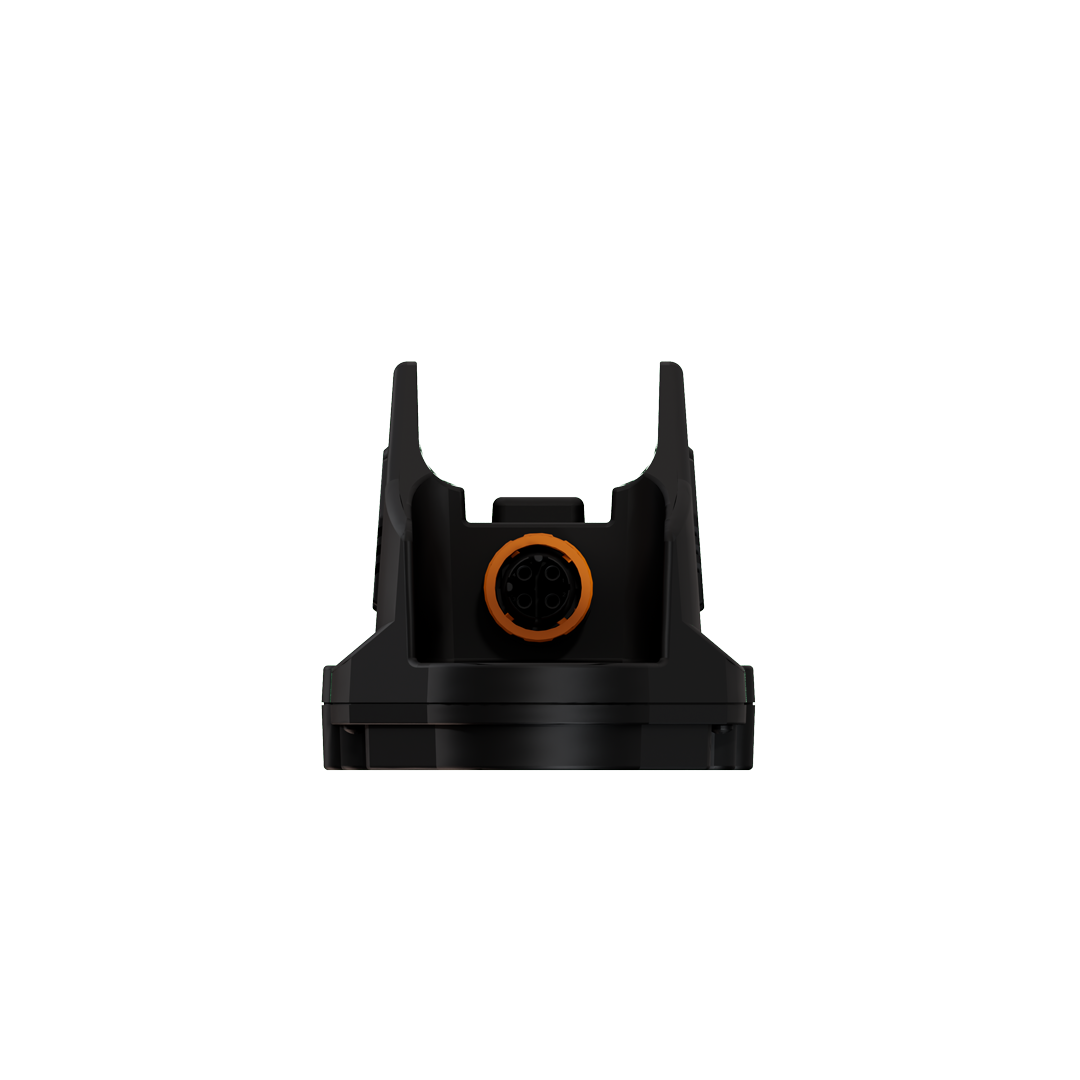

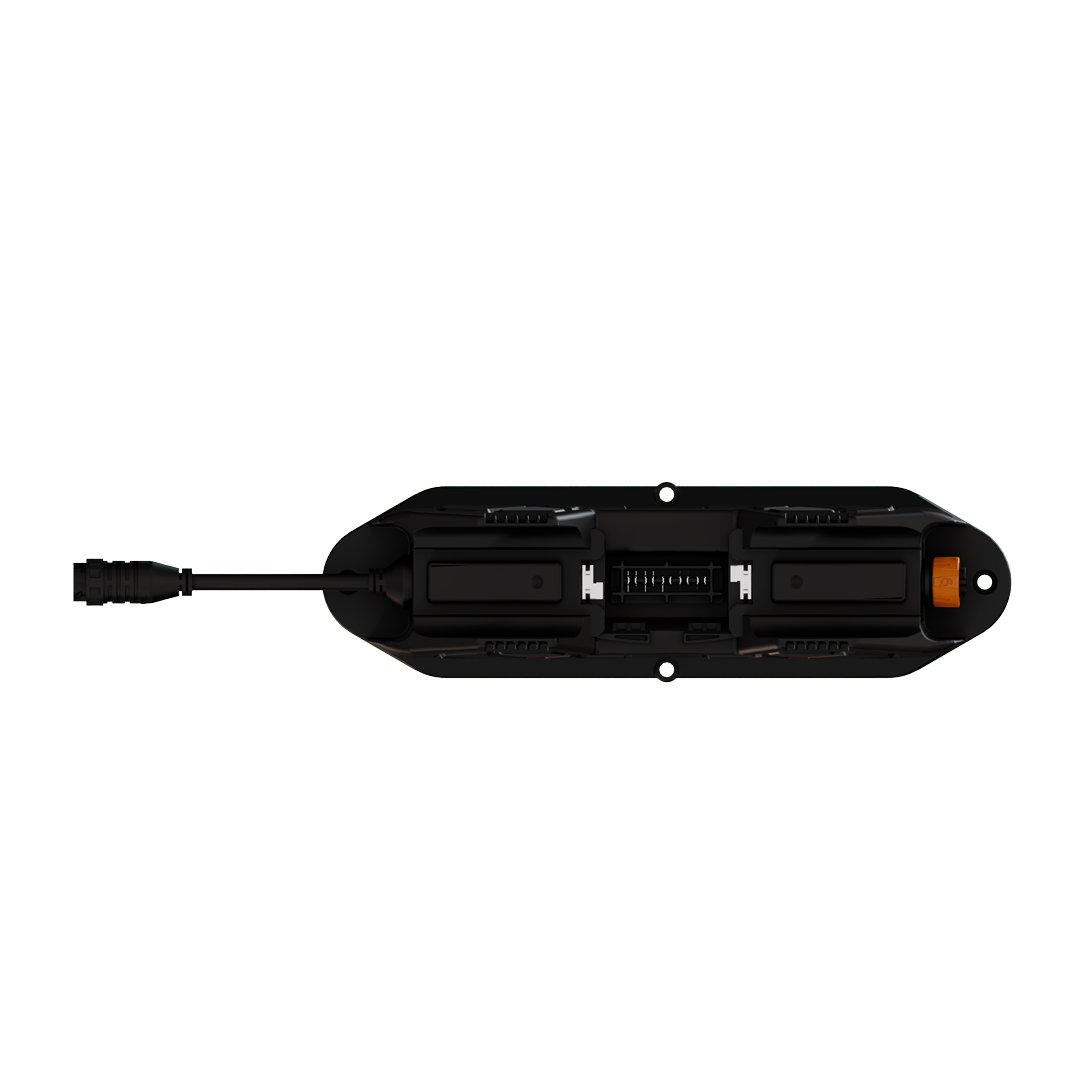

The TLD-4, is a modular plug-and-play LED driver that is designed to operate a single 90-watt LED bar. Since the TLD-4 is a modular driver, it can be combined with additional TLD-4 drivers to create a complete lighting system that can fit into any size space, and provide up to 1400 umol of light. It features four spectrum control channels and can be connected to a TrolMaster HCS or TCS controller to allow for remote control and independent settings for each of the four channels. That provides the ability to have customized lighting spectrum and timing control. The TLD-4 works with the 4ft long TLB-1 or 5ft long TLB-2 LED light bars from ThinkGrow.

Specifications

Specifications

Intput Power
90W
Input Voltage
Autosensing 100-277V~, 50/60Hz
Amp Draw
0.77A@120V, 0.43A@208V
0.39A@230V, 0.39A@240V
0.35A@277V
Working Temperature
32~104°F (0~40°C)
Working Humidity
≤90%

Maximum Connection - No. of LEDs in a Configuration

120V
Max. 11pcs
208V
Max. 19pcs
230V
Max. 21pcs
240V
Max. 22pcs
277V
Max. 25pcs

Package Contents

TLD-4 LED Driver
1
Twist Lock Plate
2
Unistrut Nuts
2
Hex Socket Screws
2
