SKU: DSR-1
25Amps Relay Device Station (100-277V) (DSR-1)
25Amps Relay Device Station (100-277V)
Product Features
- Up to 25-amp high current load
- Multiple purposes assignment
- Plug & Play

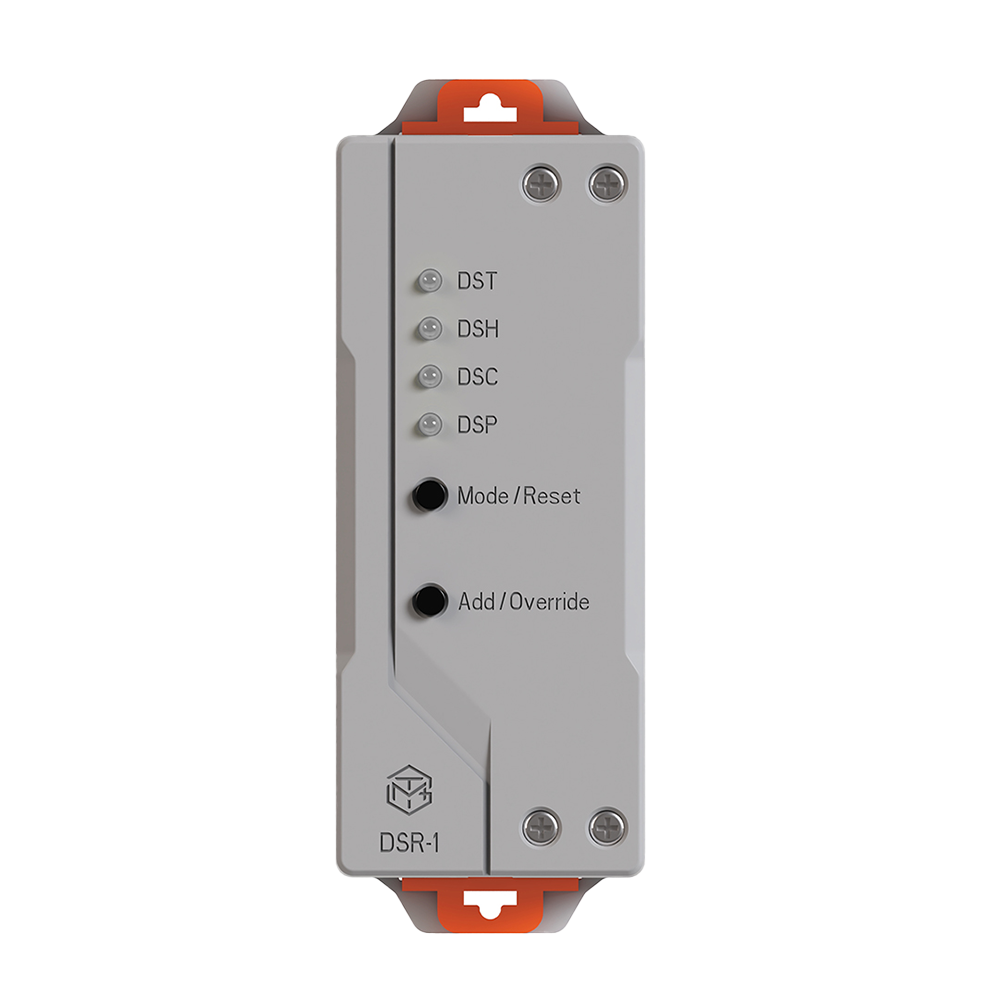

The TrolMaster DSR-1 Relay Device Station is a high-current output module(up to 25-Amp) compatible with Hydro-X, Aqua-X, Carbon-X, and Green-X control systems. The DSR-1 can be configured as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) device module. It is designed with overload protection. The DSR-1 supports up to 25 amps, ensuring reliable operation of connected equipment.
Specifications
Specifications
Input Voltage
100-277V~, 50/60Hz
Output Current
25A
Output Voltage
100-277V~, 50/60Hz
Working Temperature
32~104°F
Working Humidity
≤90%
Package Contents
25Amps Relay Device Station
1
0.5ft RJ12 Cable
1
4ft RJ 12 Cable
1
