SKU: TS-1
Thermostat Station (TS-1)
Thermostat Station, for Cool only conventinal HVAC
Product Features
- LCD Display
- Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play

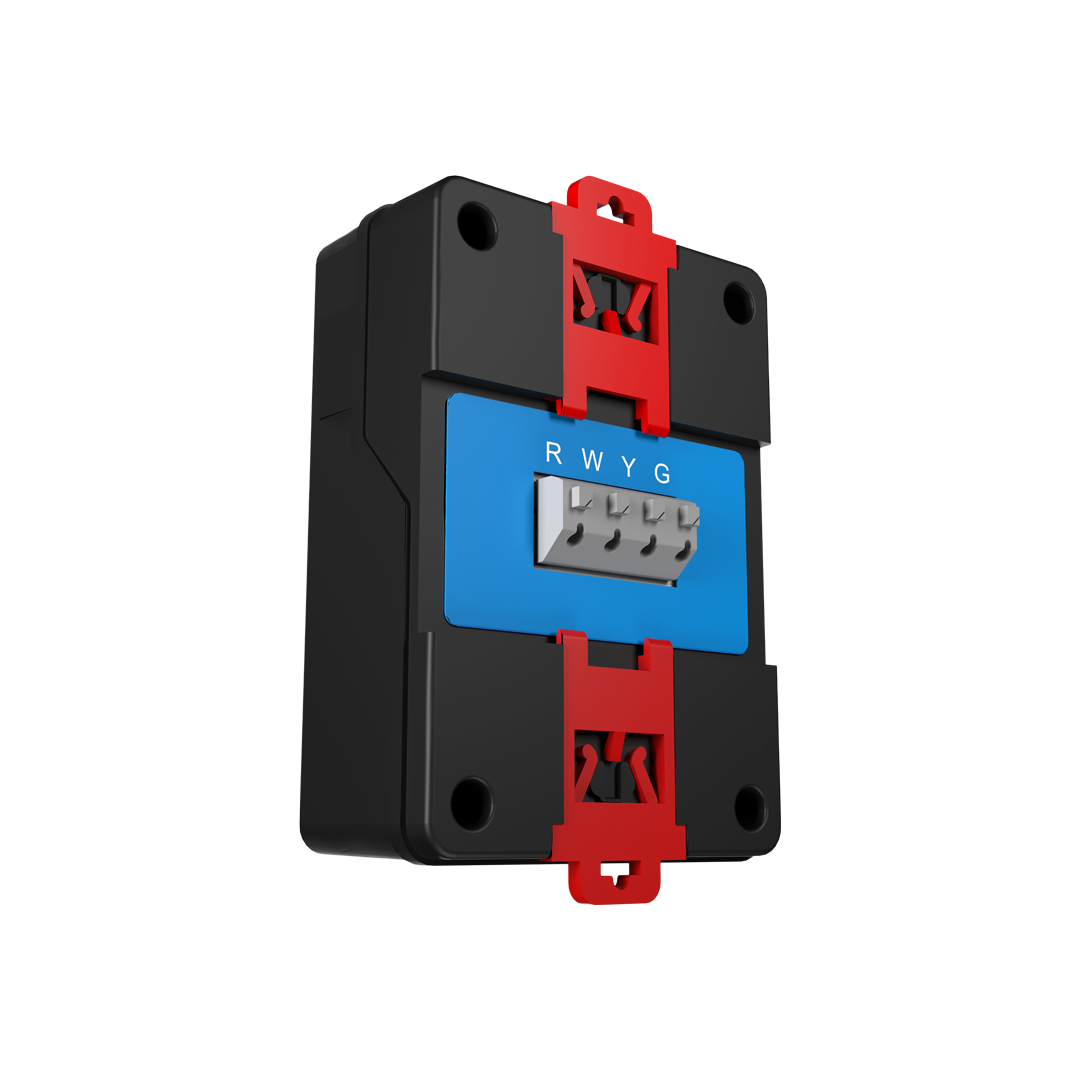

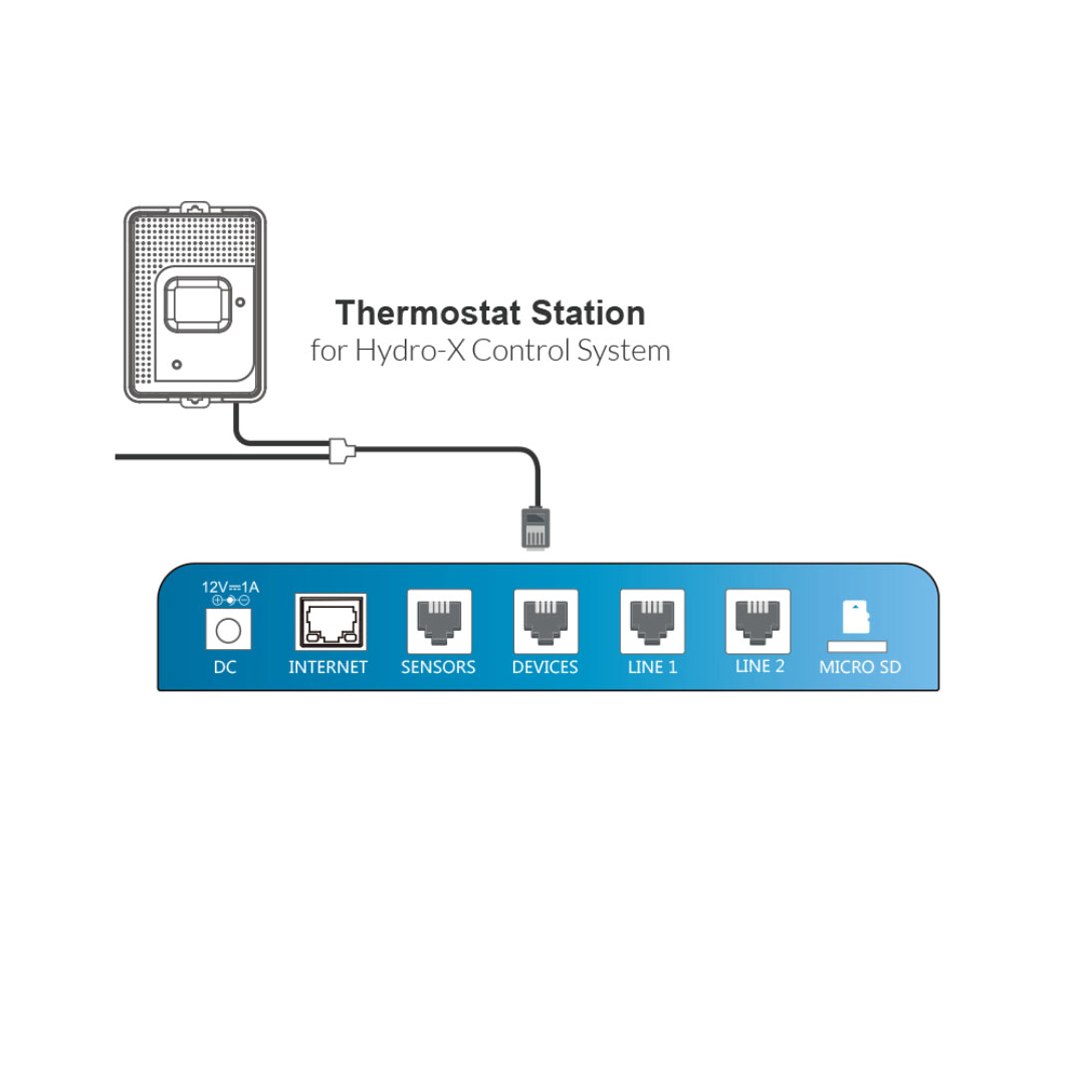

The TS-1 thermostat stations is designed to replace a thermostat connected to a convetional cool oly HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules so multiple HVAC systems can be controlled by a single Hydro-X system.
Specifications
Specifications
Input Voltage
12 VAC
Maximum Current
0.1A
Working Temperature
32-122°F
Working Humidity
≤90%
Package Contents
Thermostat Station
1
16ft RJ12 Cable
1
4ft RJ12 Cable
1
T-shaped Splitter
1
