SKU: Delta-1

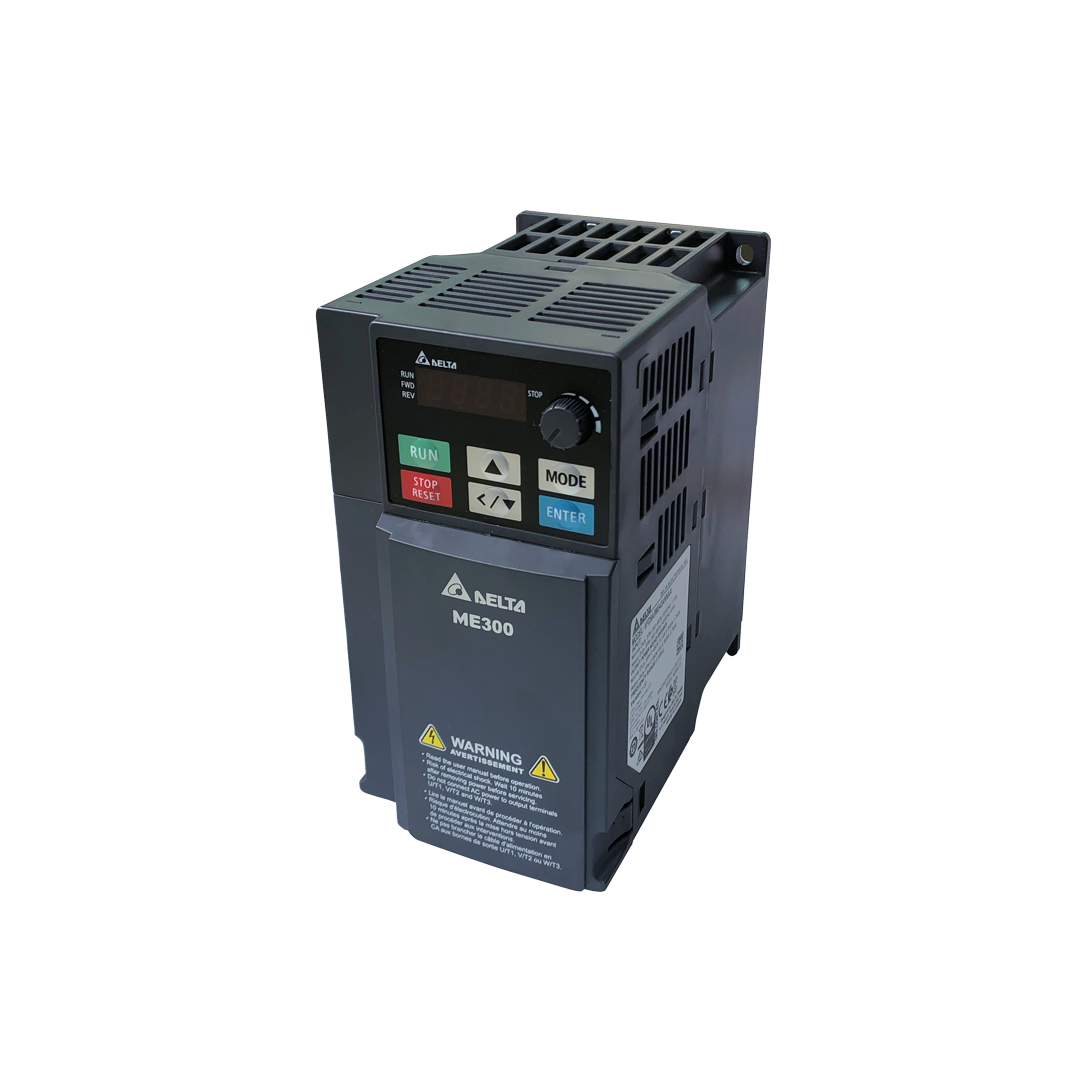

VFD, Basic Compact Driver for AC motors speed controls (Delta-1)
3PH 460V/5HP/3.7KW VFD, Basic Compact Driver for AC motors speed controls
Delta-1 is a customized made variable-frequency drive (VFD) by Delta company. It can be used in the TrolMaster Hydro-X Pro system to control the speed of AC motors (industrial fans etc.). An RJ45 cable is included for connecting with the TrolMaster VFD-1 module. This customized version has had all the parameters preset and ready to be operated with VFD-1 module straight out of the box.
Specifications
Specifications
[Power Input]
Normal Duty
3PH 380-480V 50/60Hz 11.6A
Heavy Duty
3PH 380-480V 50/60Hz 9.9A
[Output: Power ND(HD) 5HP(5HP)]
Normal Duty
3PH 0-460V 10.5A 8.0KVA 3.7KW
Heavy Duty
3PH 0-460V 9A 6.9KVA 3.7KW
Frequency Range
0-599Hz
Package Contents
Delta-1
1
RJ45
1
