SKU: CM-1

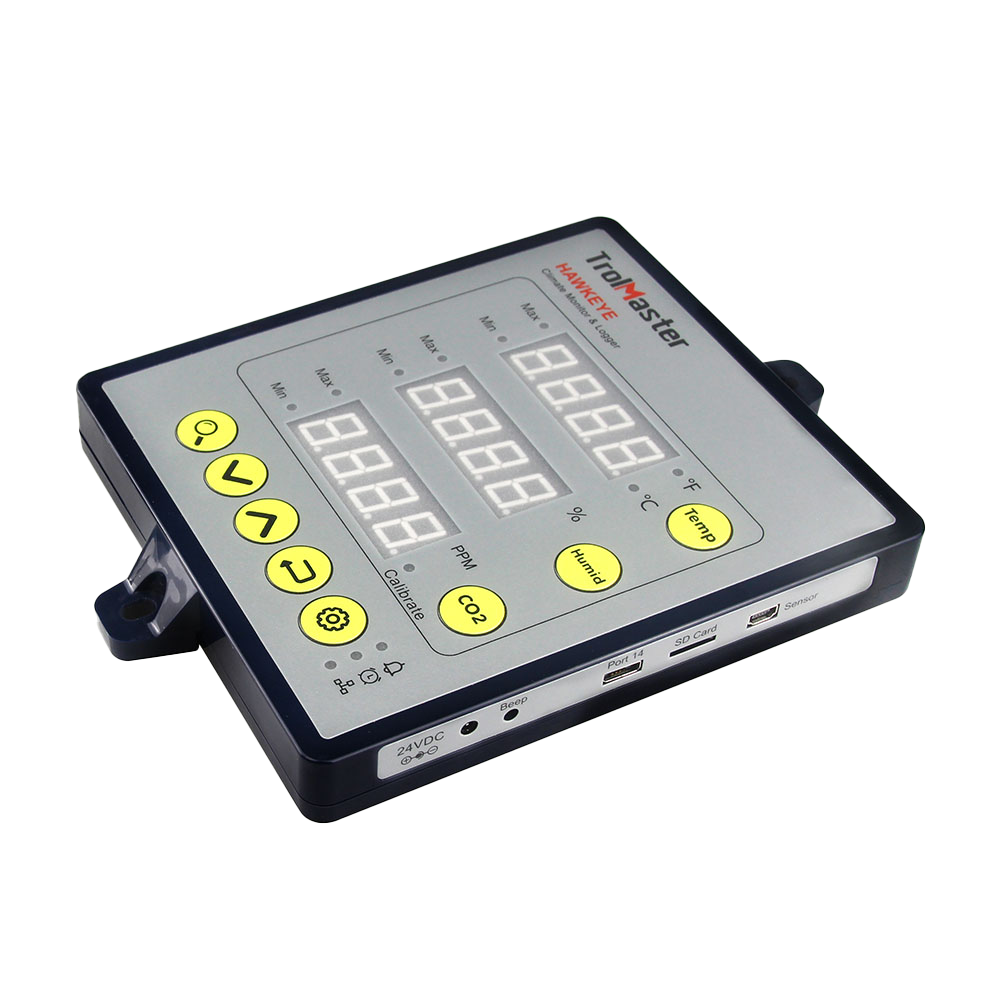

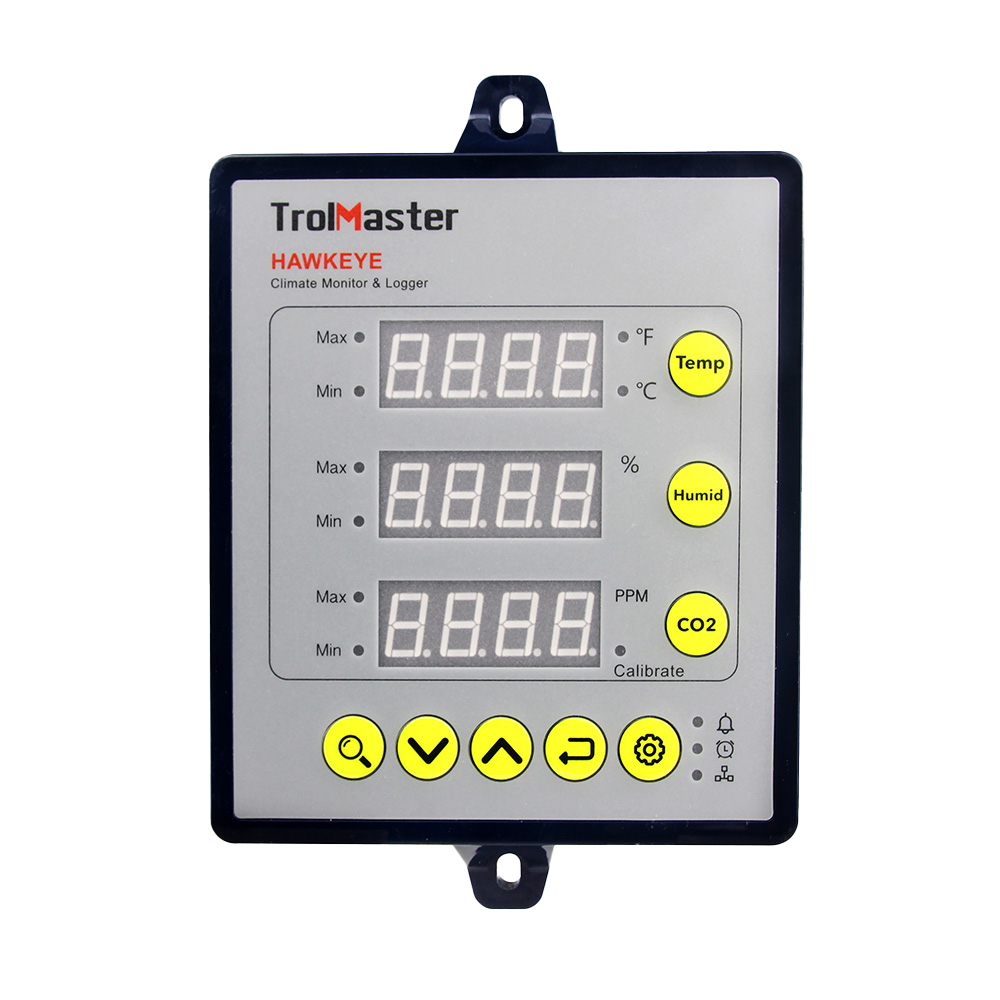

Hawkeye (CM-1)

Hawkeye 3-in-1 Monitor & Logger, 3-in-1 (Temp/Humid/CO2) Sensor, Ethernet Adapter; Free Smartphone App

Product Features

  • LED Display
  • Easy Operation
  • Temperature / Humidity / CO2 (PPM) 3-in-1 sensor
  • Smartphone APP Accessibility
  • IoT Connectivity
  • Alam Function
  • Data Logging
Chat with our experts
Overview Specs Support

The Hawkeye from TrolMaster provides an economical and accurate method to monitor an enclosed space. Some users simply need to monitor the temperature, humidity and CO2 and VPD levels without the need to actually control any devices. The CM-1 / Hawkeye is designed specifically to be used as a back-up monitoring system to ensure environmental conditions stay within acceptable limits. The Hawkeye comes COMPLETE with everything you will need to measure temperature, humidity, CO2 and also provides an accurate VPD measurement. (Vapor Pressure Deficit) The user can select the minimum and maximum allowable (limits) for temperature, humidity and CO2 levels. If those limits are exceeded, the Hawkeye will notify the user via the TrolMaster APP as well as by audible and visual alerts displayed on the LED digital display. The Hawkeye is a stand-alone monitoring system that can be used with or without an internet connection. However, once the EM-1 is connected to the internet, it will begin to automatically record and display trends and data from the sensors on an easy-to-read graph within the TrolMaster APP. Local storage of ALL recorded data can also be recalled from the unit when a MicroSD card is inserted into the Hawkeye.

Specifications

Technical Specifications

Input Voltage
00~240 VAC, 50/60Hz
Max Input Current
0.6A
Max Output Voltage/Current
24VDC/0.5A
Temperature Range
0-59.0°C
Temperature Accuracy
±0.20°C
Humidity Range
5-95% rH
Humidity Accuracy
±7%
CO2 Range
0-2000 PPM
CO2 Accuracy
30 PPM
Working Environments
Temperature 0-50°C, Humidity=90%
Package Dimensions
275mm(L) x 165mm(W) x 70mm(H)

Package Contents

HAWKEYE Climate Monitor & Logger
1

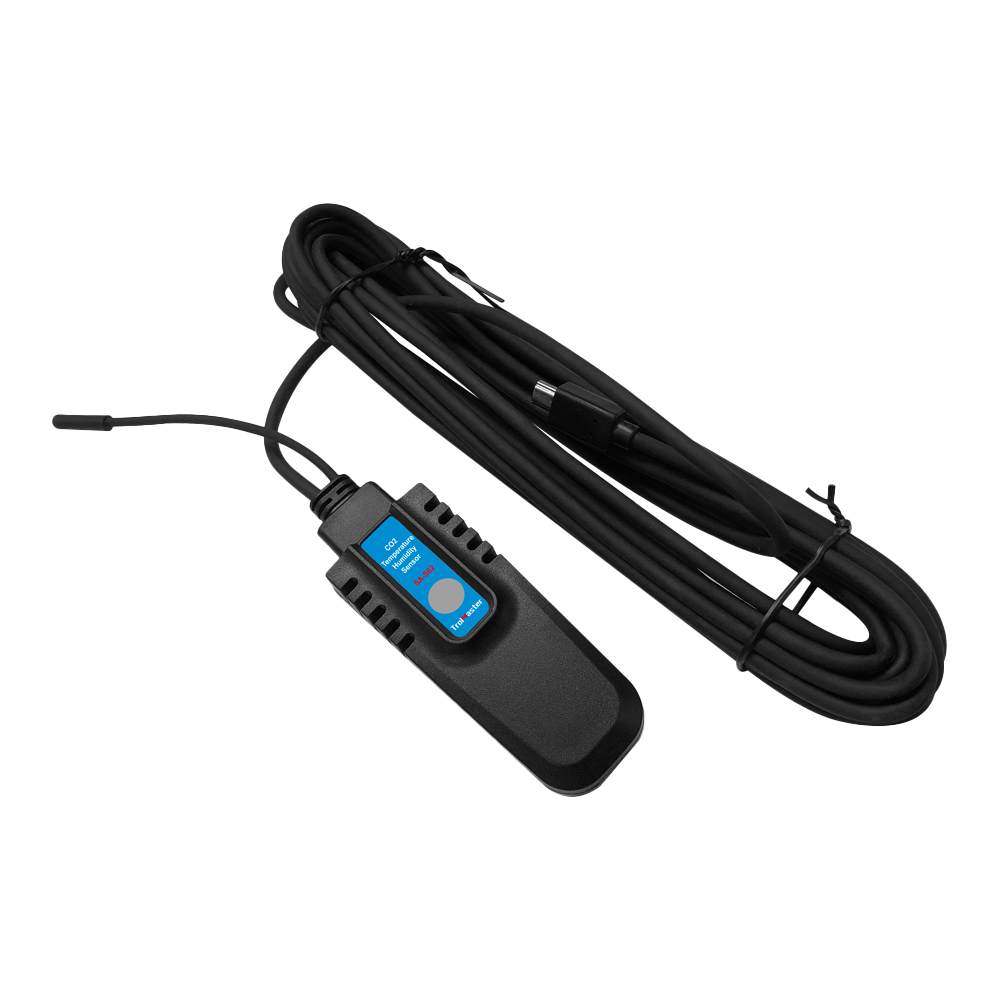

SA-S81 Sensor
1
DC Adaptor
1
